PRODUCT DESCRIPTION
The BS-520 is extremely aggressive, but floor friendly in removal of all types of thick coatings, underlayments and high spots in floors.
FIELD OF APPLICATIONS
- Removing adhesives, paint, glue, tough floor coatings, contamination.
- Grinding natural stone, mastics, concrete surface, granite.
- Leveling uneven concrete surface, high spots, scratches and grooves.
FEATURES / CONSTRUCTION
- Clamping lever
- Dust shroud with rubber seal
- Rubber wheels 50 x 160 mm
- Connection for Industrial extractor
- Emergency stop switch
- Special screw for transport

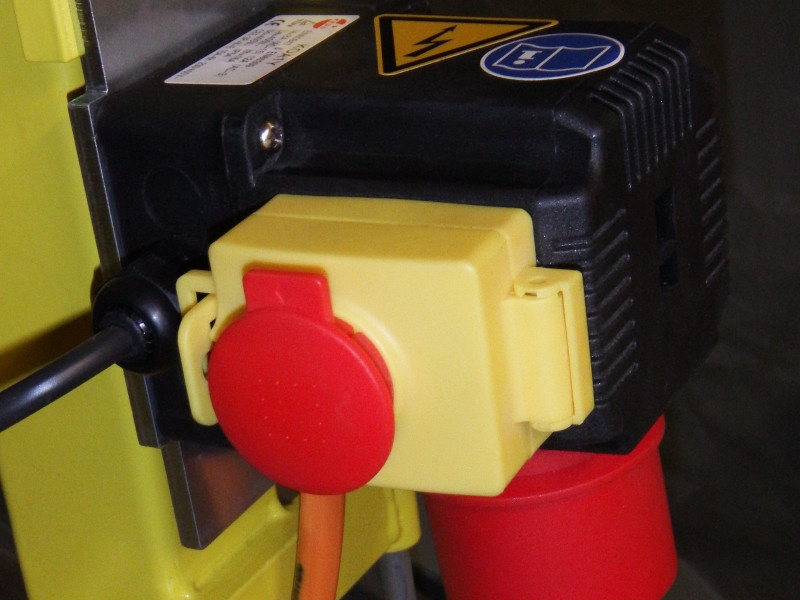

- Security switch
Switch box
ON-OFF Button, emergency Stop.
Handle assembly
With hand levers, height adjustment.
Dust control
Suction pipe for industrial VAC.
Rubber wheels
Easy operation thanks to robust rubber wheels
TOOLS / ACCESSOIRES
AT-PCM-8L
Aggressive removal of thick and sticky coatings, adhesives. Leaves a course profile.
AT-PCM-9L-1
Removal of glue, thin coatings and paint. With special support Diamonds to prevent scratches.
AT-PKD-RONDO
Removal, grinding of paint, glue, adhesives. Leaves fine smooth surfaces.
AT-CA-6
Metal bond Diamond Segment for work on concrete, leveling surfaces, joints and etc.
TECHNICAL DATA
| Variations | Motor/ Power | Voltage | Speed of rotation |
| Standard 400V | 3 kW | 3 x 400V / 50 Hz / 6.4A | 840 RPM |
| Variations with VD speed control | Motor/ Power | Voltage | Speed of rotation |
| Option 400V | 3 kW | 400V / 50 Hz / 6.4A | 350 – 950 RPM |
| All Machines | |
| Working Width | 520 mm |
| Dimensions (L x W x H) | 1300 x 560 x 1090 mm |
| Weight | 120 kg |
| Suction Tube Ø | 38 mm / 51 mm Tube |
| Basic equipment | BS-520-EL with 3 standard Toolholders (BS-520-240) |
| equipped with 9 Segments (AT-CA-6H) | |
| 5.5 metre power cable and plug | |
| 2 Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
