Beschreibung
PRODUCT DESCRIPTION
FIELD OF APPLICATIONS
- Removing of old coatings such as Paint, Epoxy, Glue and Urethane
- Leveling uneven concrete surfaces
- High spot removal
- Removal of carpet and tile adhesives
- Grinding Anhydrite
- Removing of grooves, cracks and milling signs
- Aggressive removal of coatings and laitance
- Removal of coatings on sport grounds and natural stone
- Improving the Surface Adherence for new coatings
Removing thin layers and paint.
Grinding concrete surfaces.
PROCEDURE
4-Counter-Rotating Heads hold 12 Diamond Segments. Grinding Pressure combined with dynamic PKD-Tools and Flexibility, ensure excellent Surface Preparation.
FEATURES / CONSTRUCTION
- 4 Counter-Rotation Heads hold 12 Diamond PCD segments
- Powerful grinder for large projects
- Easy one man Operation
- Adjustable Handle
- Powerful 11 kW Motor Drive
- Fast Tool Change with „Easy-Click“
- Robust steel design
- For wet and dry application
Switch box Schneider
Schneider Electric motor with on/off button, emergency Stop function

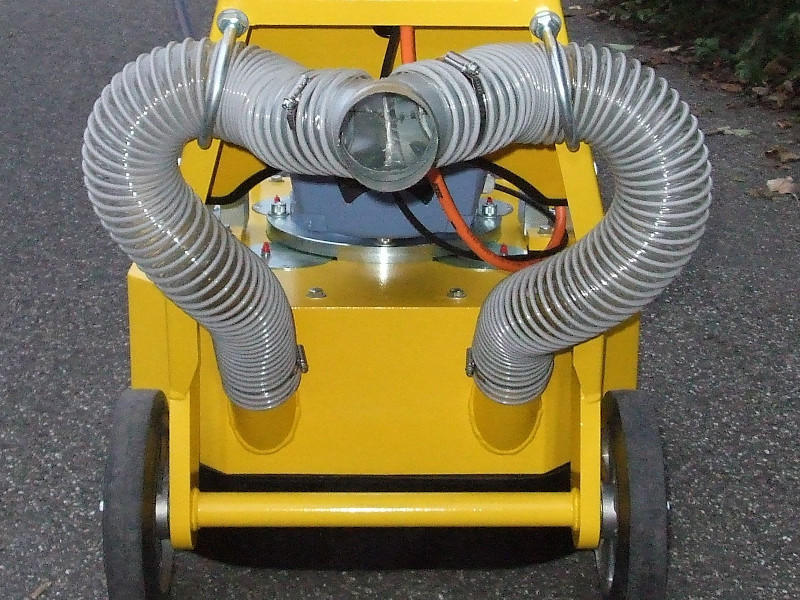

Suction port
Connection for industrial vacuum cleaner for low-dust work

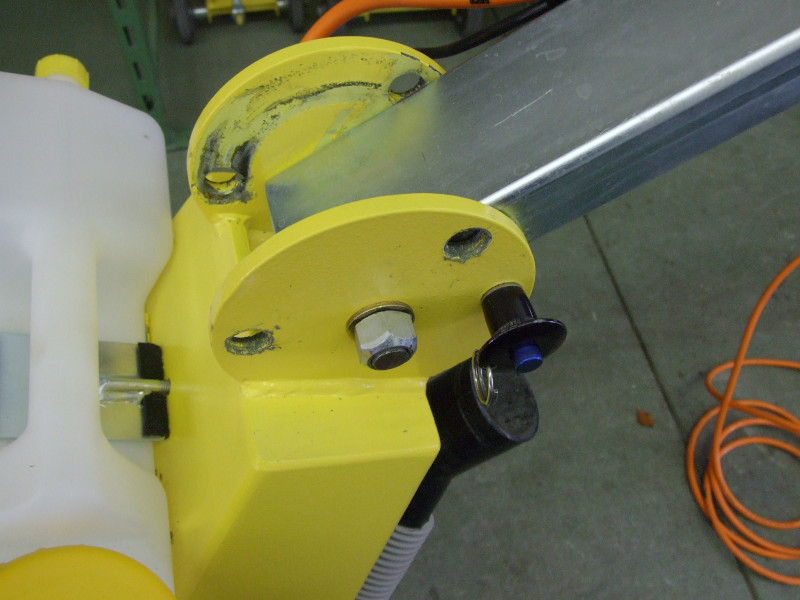

Adjustable height
Height adjustable for good comfort

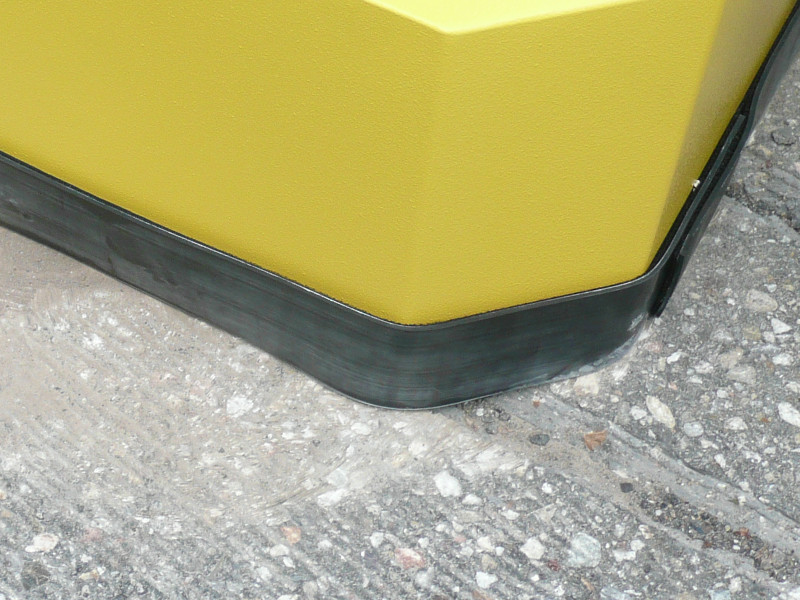

Dust protection
For an almost dust-free work
Rubber wheels
For smooth running
TOOLS / ACCESSOIRES
AT-PCM-8L
Aggressive removal of thick and sticky coatings, adhesives. Leaves a course profile.
AT-PCM-9L-1
Removal of glue, thin coatings and paint. With special support Diamonds to prevent scratches.
AT-PKD-RONDO
Removal, grinding of paint, glue, adhesives. Leaves fine smooth surfaces.
AT-CA-6
Metal bond Diamond Segment for work on concrete, leveling surfaces, joints and etc.
OPTION

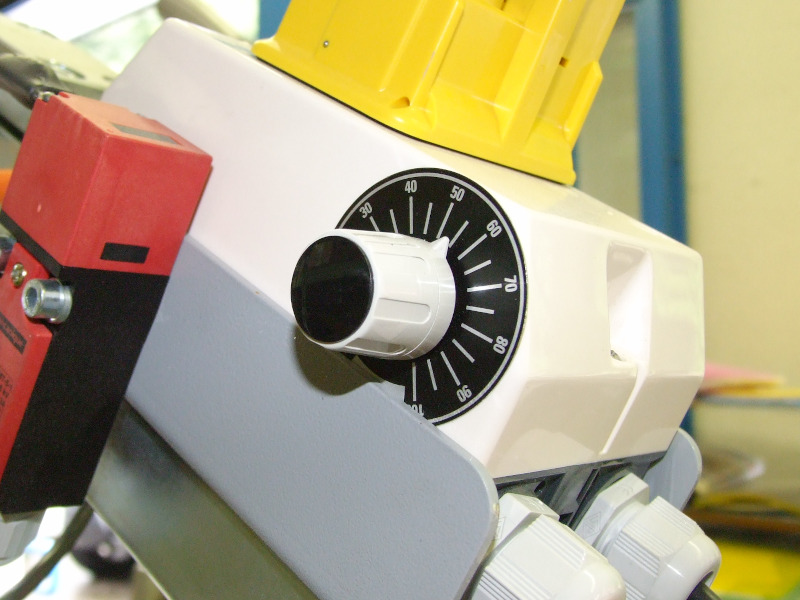

Rotation regulation
TECHNICAL DATA
| Motor/ Power | 11 kW (Electric) |
| Voltage | 3 x 400V / 50 Hz / 23A |
| Speed of rotation | 1’460 RPM |
| Working Width | 500 mm |
| Dimensions (L x W x H) | 2350 x 590 x 1110 mm |
| Weight | 330 kg |
| Suction Tube Ø | 51 mm / 75 mm Schlauch |
| Basic equipment | BS-500-EL with 4 standard Toolholder (BS-500-440) |
| equipped with 12 Segments (AT-CA-6H) | |
| with plug, without cable | |
| Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
