Beschreibung
PRODUCT DESCRIPTION
FIELD OF APPLICATIONS
- Removal of coatings / adhesives, latex, paint, mastic, glue
- Polishing concrete floors, Natural Stone, Granite and Terrazzo

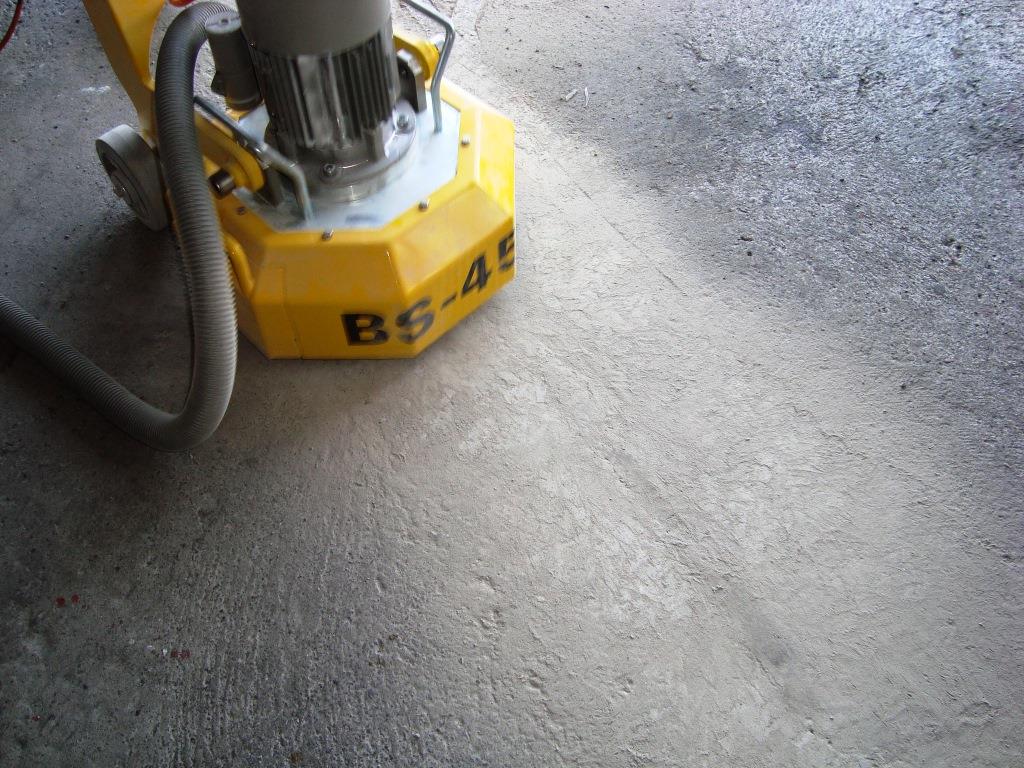

- Grinding of concrete floors, Industrial Surfaces
- Leveling flattening irregular concrete surfaces
Exposing aggregates, Grinding of Concrete Surfaces
Cleaning and Repolishing Surfaces like Terrazzo and Marble
Sanding Pads for finishing wooden Floors
PROCEDURE
The combination of the Triple Head Grinding Technology, and a powerful planetary system, provides a variable Speed Operation. Ideally suited to prepare and polish surfaces. The BS-450 is the perfect machine for medium large areas.
TOOLS / ACCESSORIES
AT-PCM-8L
Aggressive removal of thick and sticky coatings, adhesives. Leaves a course profile.
AT-PCM-9L-1
Removal of glue, thin coatings and paint. With special support Diamonds to prevent scratches.
AT-PKD-RONDO
Removal, grinding of paint, glue, adhesives. Leaves fine smooth surfaces.
AT-CA-6
Metal bond Diamond Segment for work on concrete, leveling surfaces, joints and etc.
FEATURES / CONSTRUCTION
- The 3-Counter-Rotating heads add stability and produce a superior finish.
- Easy coupling to industrial Dust Collection System
- Dust Control Protects against silica and other dusts
- The handle can be adjusted to a height that suits the operator
- Removable side plate to work up to the edge of the wall
- For dry and wet applications
- „Easy Click“ quick Tool Change System
- Soft on Floors tough on coatings
- Steel Body construction
Switch box Schneider
Schneider Electric motor with on/off button, emergency Stop function
Suction port
Connection for industrial vacuum cleaner for low-dust work

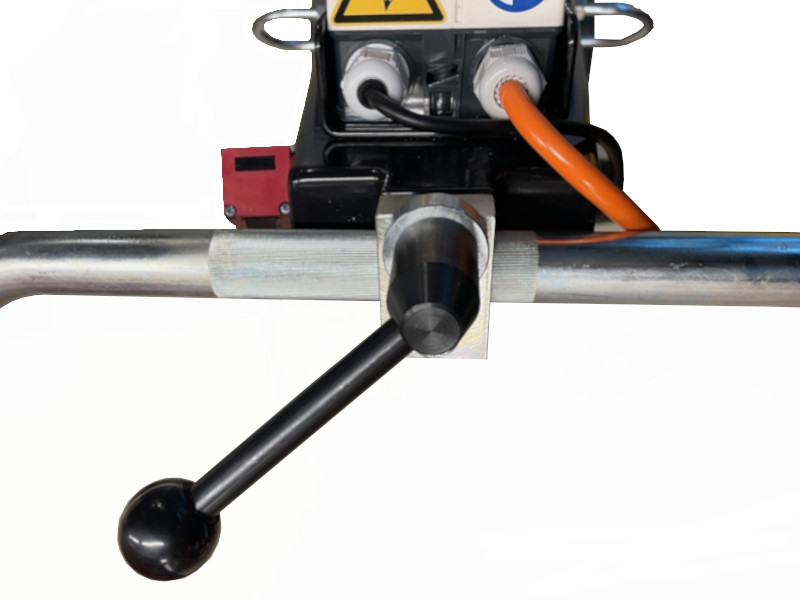

Adjustable height
Height adjustable for good comfort

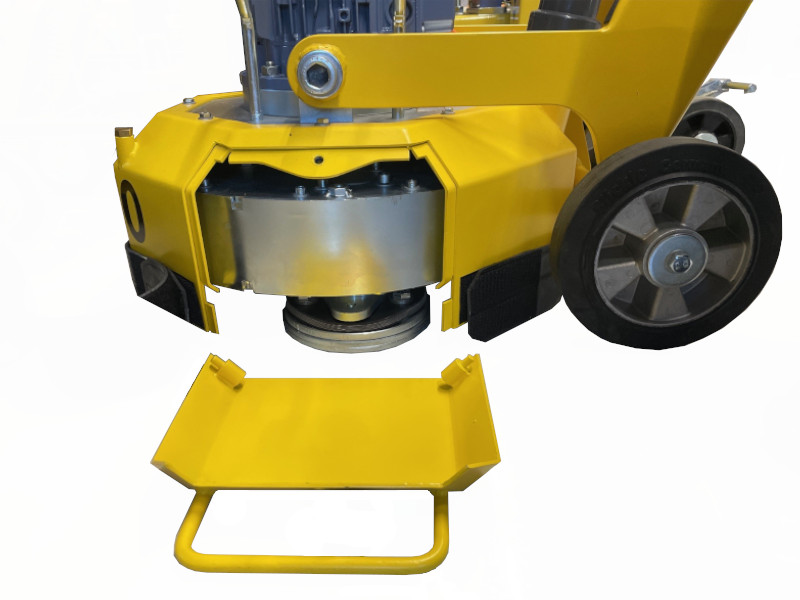

Edge processing
Housing opening for close-to-edge use
Rubber wheels
For smooth running

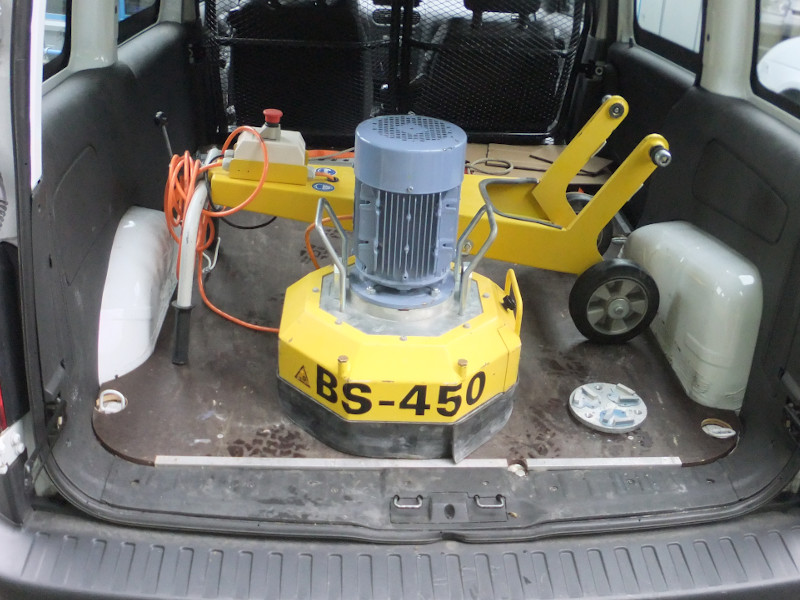

Easy transport
Chassis and drive can be separated quickly and easily
TECHNICAL DATA
| Variations | Motor/ Power | Voltage | Speed of rotation |
| Standard 230V | 2.2 kW | 230V / 50 Hz / 16A | 840 RPM |
| Standard 400V | 2.2 kW | 3 x 400V / 50 Hz / 4.6A | 840 RPM |
| Variations with VD speed control | Motor/ Power | Voltage | Speed of rotation |
| Option 230V | 2.2 kW | 230V / 50 Hz / 16A | 300 – 950 RPM |
| Option 400V | 2.2 kW | 3 x 400V / 50 Hz / 4.6A | 300 – 950 RPM |
| All Machines | |
| Working Width | 450 mm (3 x 150 mm) |
| Dimensions (L x W x H) | 800 x 560 x 1050 mm |
| Weight | 116 kg |
| Suction Tube Ø | 38 mm / 51 mm Tube |
| Basic equipment | BS-450-EL with 3 standard Toolholders (BS-450-240) |
| equipped with 9 Segments (AT-CA-6H) | |
| 5.5 metre power cable and plug | |
| 2 Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
