PRODUCT DESCRIPTION

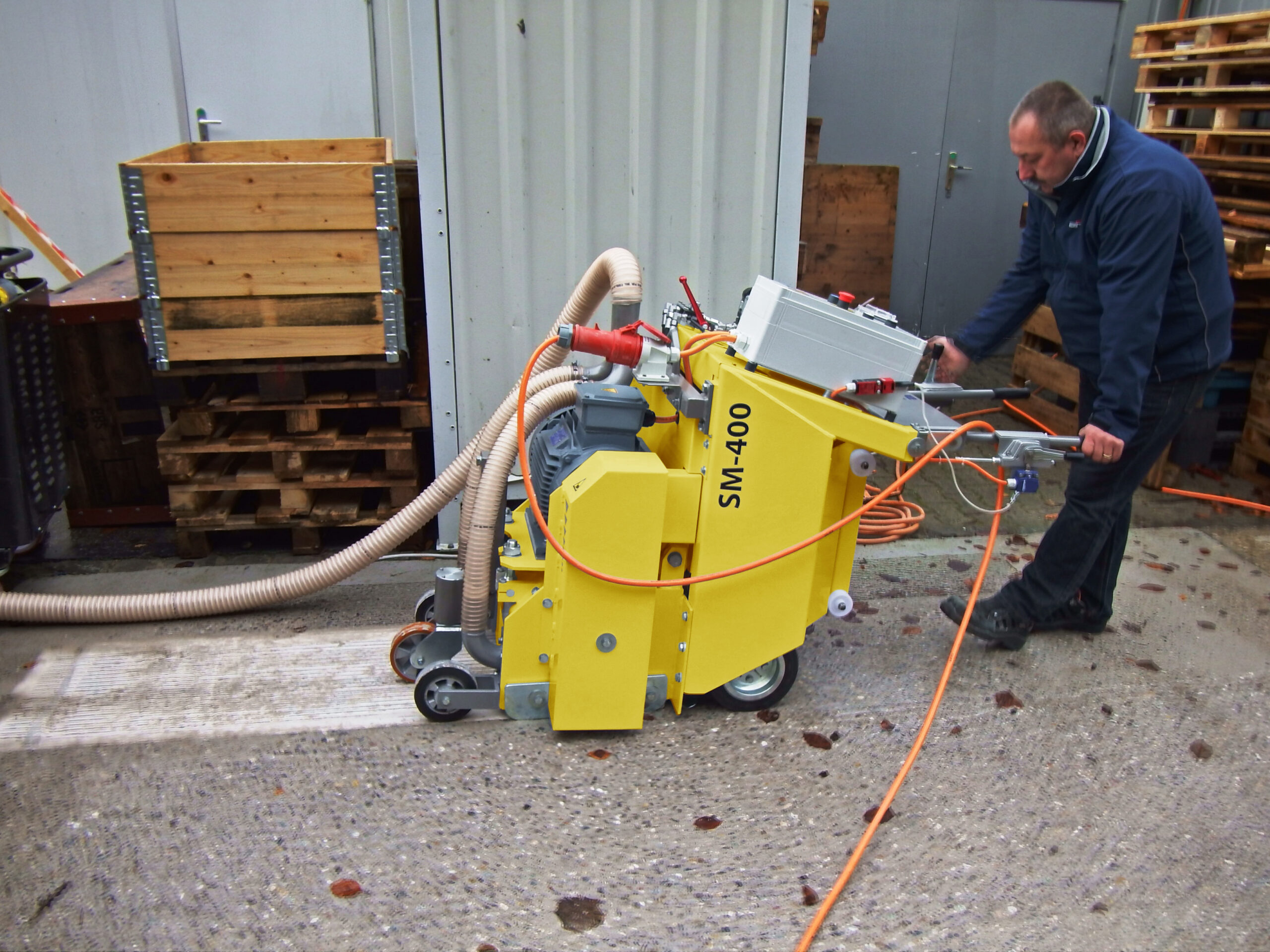

Built for high Performance on big areas. The new SM-400 Machine is a further development of the already powerful line of SM-320. With that knowledge and experience this Power House with a 400 mm Working width was designed.
FIELD OF APPLICATIONS
- Renovation of industrial floors
- Coating removal
- Safetey grooving
- Epoxy screed removal
- Aggregate exposure
- Lippage removal
- Tolerance works
- Eliminate trip hazards

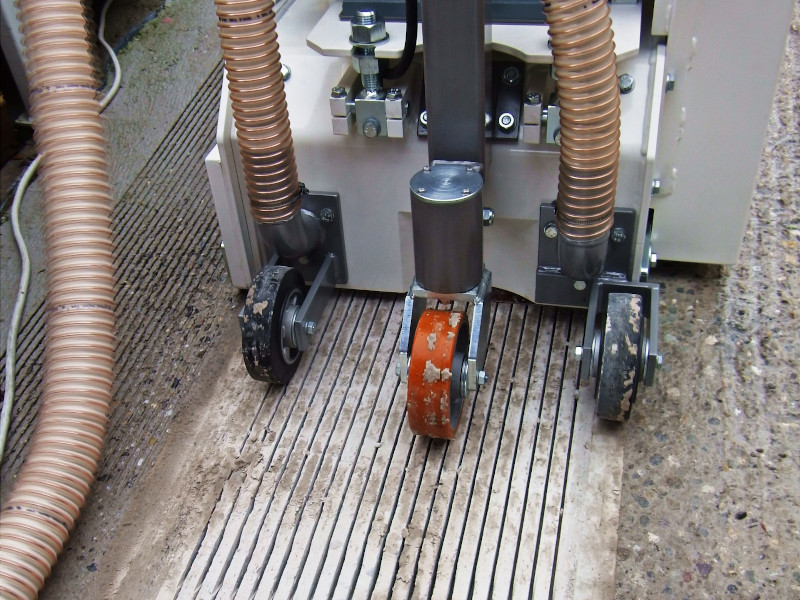

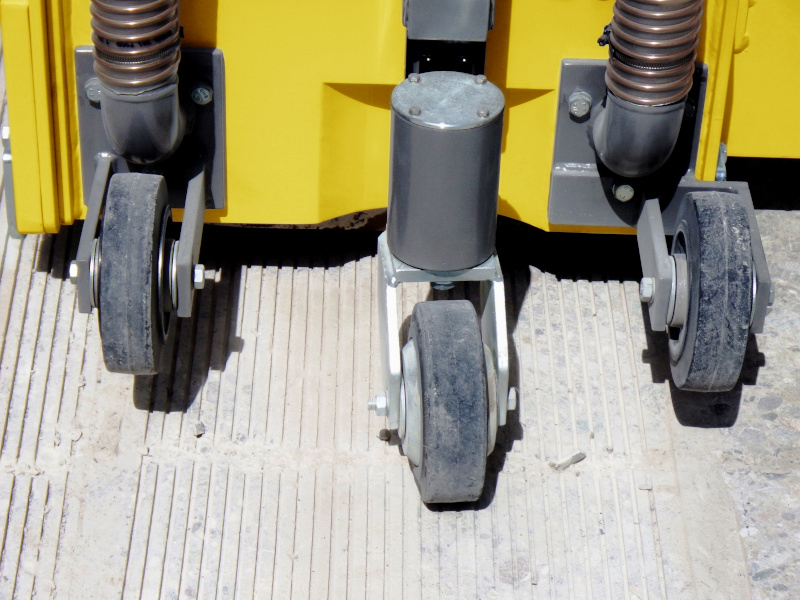

Cutting large and fast on 400 mm width.
Cutting up to 30 mm deep right away, depending on ground hardness.
PROCEDURE
The Shave-Master SM-400 works on the same principle as the RM-400. The drum is enclosed in the main body of the machine and rotates at high speed. The difference is that the drum is made up of a number of “Diamond Blades” which produce fast and efficient results on different surfaces.
TOOLS / ACCESSORIES
According to the job the drums can be assembled in different ways. With compact assembling whole layers can be removed.
Diamond Blade
Ø 350 mm
30 Diamond Blades
Assembling: „compact“
FEATURES / CONSTRUCTION
- Dust Free when attached to a suitable vacuum unit
- Self Propelled electric/hydrostatic drive controls
- Variable cutting depth up to 30 mm according to concrete hardness
- Height adjustable and anti-vibration handles
- Heavy duty welded steel construction.
Switch box
Electric motor with on/off button, emergency Stop function
Drum control
Forward and reverse, variable drive speed
Adjustable height
Adjustable milling depth
Speed control
Forwards and backwards, infinitely adjustable
Differential
Precise adherence to the milling direction and high manoeuvrability
Suction port
Connection for industrial vacuum cleaner for low-dust work
Drive unit
Hydrostatic drive, fully encapsulated
Dead-Man-Switch
User protection with optimum safety thanks to emergency stop function
TECHNICAL DATA
| Variations | Motor/ Power | Spannung |
| Standard 400V | 18 kW | 400V / 50 Hz / 63A |
| SM-400-EL | |
| Working Width | 400 mm |
| Dimensions (L x W x H) | 1900 x 750 x 1070 mm |
| Poids | 690 kg |
| Weight | 690 kg |
| Suction Tube Ø | 51 mm / 75 mm Tube |
| Traction drive | hydrostatic, self-propelled |
| Basic equipment | SM-400 with 1 Standard Drum (SM-400-500) |
| equipped with 30 Diamond Discs SM-400-910 (Ø 350mm) and 88 spacers | |
| 5 metre power cable and plug | |
| Hexagon spanner | |
| Instruction manual and spare parts list | |
| Audit Log und Warranty Certificate |
